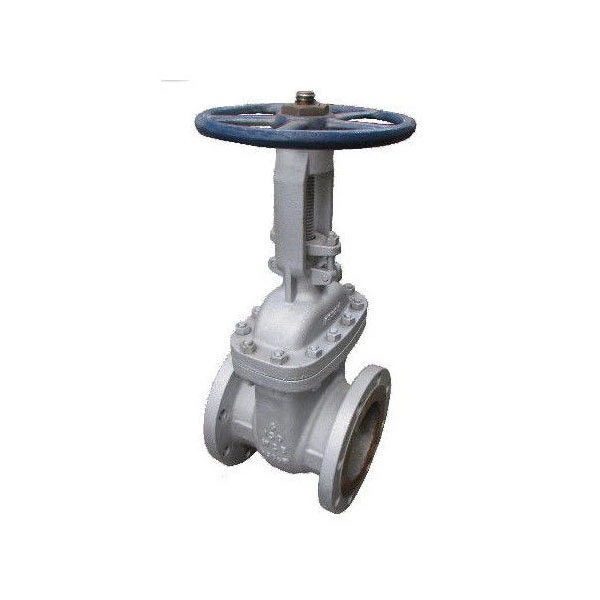

Lever Operation Stainless Steel Gate Valve CL150 - 2500 Pressure
- Size:
- 2~48"
- Pressure:
- CL150~2500
- Operation:
- Lever
- Materials:
- Stainless Steel
- High Light:
- flanged gate valve , industrial gate valve
- Specification:
- 2"~48" (DN50~DN1200)
- Certifcate:
- CE, API,ISO
Lever Operation Cast Gate Valve Stainless Steel Gate Valve CL150 - 2500 Pressure
Specifications:
- 2"~48" (DN50~DN1200)
- W. P.: CLASS 150/300/600/900
/1500/2500 - W. T.:-20℃ ~400℃ (-4℉~752℉)
- Design:API 600
- Flange Dimension:ASME B16.5
- Face to Face: ASME B6.10
- Rising stem

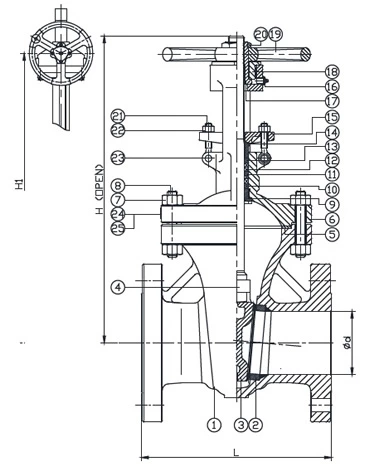

| ITEM | PARTS | MATERIAL | ||
| Trim1 | Trim5 | Trim8 | ||
| 1 | BODY | ASTM A216-WCB | ||
| 2 | SEAT RING | ASTM A216-WCB+Cr13 | ASTM A105+STL#6 | ASTM A105+STL#6 |
| 3 | WEDGE | ASTM A216-WCB+Cr13 | ASTM A105+STL#6 | ASTM A216-WCB+Cr13 |
| 4 | STEM | ASTM A182-F6a | ||
| 5 | GASKET | SPW SS 304+GRAPHITE | ||
| 6 | BONNET | ASTM A216-WCB | ||
| 7 | NUT | ASTM A194-2H | ||
| 8 | STUD | ASTM A193-B7 | ||
| 9 | BACK SEAT | ASTM A276-410 | ||
| 10 | PACKING A | GRAPHITE | ||
| 11 | SPACER RING | ASTM A276-410 | ||
| 12 | PACKING B | GRAPHITE | ||
| 13 | PACKING C | |||
| 14 | GLAND | ASTM A276-410 | ||
| 15 | GLAND FLANGE | ASTM A216-WCB | ||
| 16 | GREASE FITTING | CARBON STEEL | ||
| 17 | STEM BUSHING | ASTM A439 D-2 | ||
| 18 | RETAINING NUT | ASTM A29-1025 | ||
| 19 | HANDWHEEL | DUCTILE IRON | ||
| 20 | NUT | ASTM A29-1025 | ||
| 21 | EYE BOLT | ASTM A193-B7 | ||
| 22 | NUT | ASTM A194-2H | ||
| 23 | PIN | ASTM A29-1025 | ||
| 24 | NAMEPLATE | SS 304 | ||
