Ductile Iron Cast Gate Valve / Manual Resilient Seated Gate Valve
- Size:
- NPS 2"~60"
- Materials:
- WCB, LCB, WC6, WC9, C12,CF8, CF8M, CF3,CF3M,etc
- High Light:
- industrial gate valve , full bore gate valve
- Temperature:
- -196°~593°
- Operation Method:
- Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
- Pressure Rating:
- Class 150~2500
- Connection End:
- BSEN 1092, ASME B16.5, ASNE B16.47,

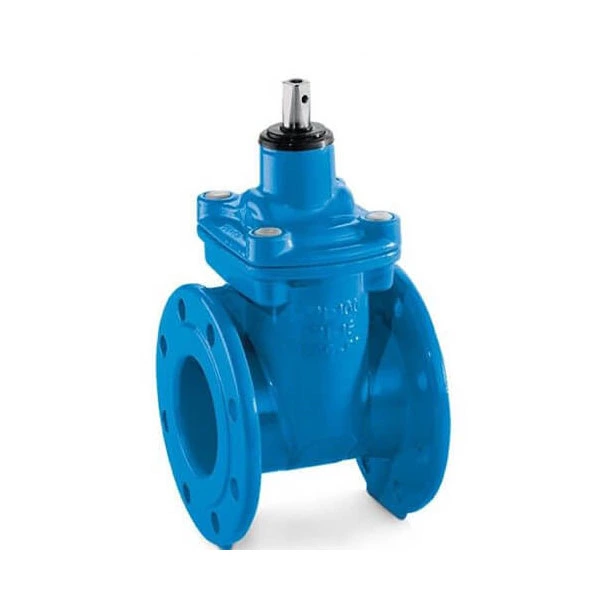

Ductile Iron Cast Gate Valve / Manual Resilient Seated Gate Valve
Product description:
Suitable for use with water, neutral liquids and sewage,Body material Ductile iron,Flanges are available drilled to PN10 or PN16.
Resilient-seated gate valve
Type: Z45X
Size:DN50-DN1200
Pressure Range:0.6-1.0 MPA
Working Temp.:≤80°
Material:HT250,QT450 Cast iron,carbon steel,stainless steel,alloy steel.
Medium:Water, Air, Oil Corrosion
Operation: Manual Pneumatic Electric
Applicable standard
Resilient-seated gate valves, AWWA C509
Steel gate valves, ISO 10434/ISO 14313
Design standard: ASME B16.34
Face to face: ASME B16.10
End flanges: ASME B16.5
Butt welding ends: ASME B16.25
Inspection and test: API 598
| Technical Specification | |
| Design Standard: | AWWA C509 |
| Body material: |
ASTM A216 WCB WCC; ASTM A217 WC1 WC6 WC9; ASTM A351 CF8,A351 CF8M, A351 CF3,A351 CF3M,A351 CN7M; ASTM A352 LC1 LCB LCC LC3(Cast Steel, Alloy Steel, Stainless Steel, Special Steel) |
| Nominal Pressure | Class 150~2500(PN10-PN420) |
| Nominal Diameter: | 1/2"~60"(DN15-1500) |
| Operation | Manual, Wormgrear,Pneumatic, Electric |
| End Connection: | RF, RTJ, BW |
| Face To Face: | ASME B16.10 |
| Working Temperature: | -110℃~+560℃ |
| Test And Inspection: | API 598 |
| End flange dimension: | ASME B16.5,ASME B16.47 |
| Butt weld end dimension: | ASME B16.25(BW) |
| NACE: | NACE 0175 |
| Certificate: | ISO9001, ISO14001, ISO28001, TS, CE,TUV |
