Cast Steel Flanged 2 Piece Body Ball Valve Full Port For Industrial
- Certification:
- API ISO Ts CE
- Minimum Order Quantity:
- 1PC
- Prices:
- Negotiable
- Packaging Details:
- Wooden Case
- Delivery Time:
- 7-30 work days
- Payment Terms:
- L/C, D/A, D/P, T/T, Western Union, MoneyGram
- Supply Ability:
- 10000PCS/Mouth
Detailed Product Description
| Media: | Oil | Material: | Carbon Steel |
|---|---|---|---|
| Connection Form: | Thread | Driving Mode: | Manual |
| Nominal Pressure: | ANSI CLASS 150-900 | Channel: | Straight Through Type |
| Structure: | Floating Ball Valve | Function: | Blow-Down Valve |
| Temperature: | Normal Temperature | Standard: | BS5351 |
| Application: | Industrial Usage, Water Industrial Usage, Household Usage | Body / Ball / Stem / Seat: | 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625 |
| High Light: | two piece ball valve , industrial ball valve | ||

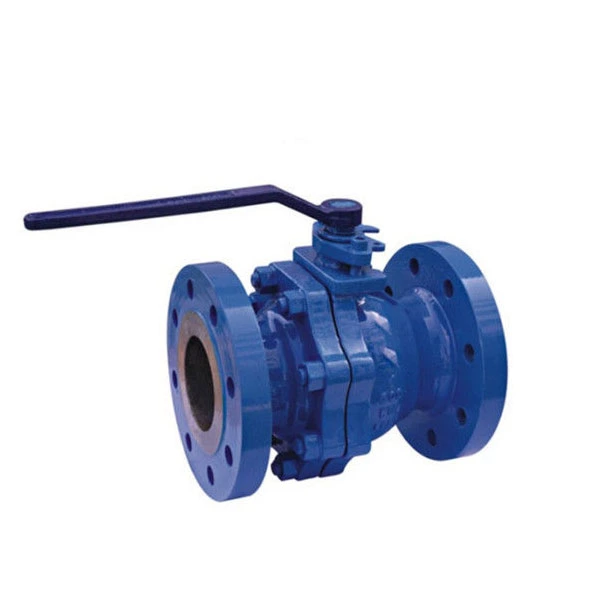

Cast Steel Flanged 2 Pieces Full Port Industrial Floating Ball Valve

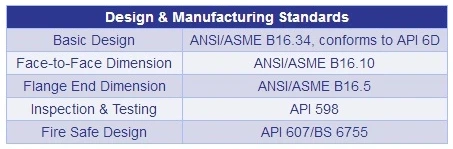

JIEYU Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the JIEYU design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.
Design Features
- Full port, 1/2"~6" (DN15~DN150)
- W.P. : CLASS 150-300
- W.T. : -20°C~200°C (-4°F~392°F)
- Investment casting
- Blow-out proof stem
- Silicone Free
- Anti-static device (option)
- Locking device
- Mounting pad ISO 5211

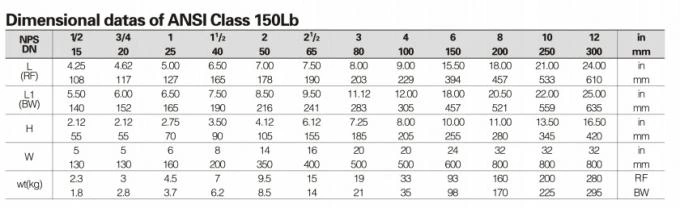

- Flange dimension: ASME B16.5
- Face to face: ASME B16.10

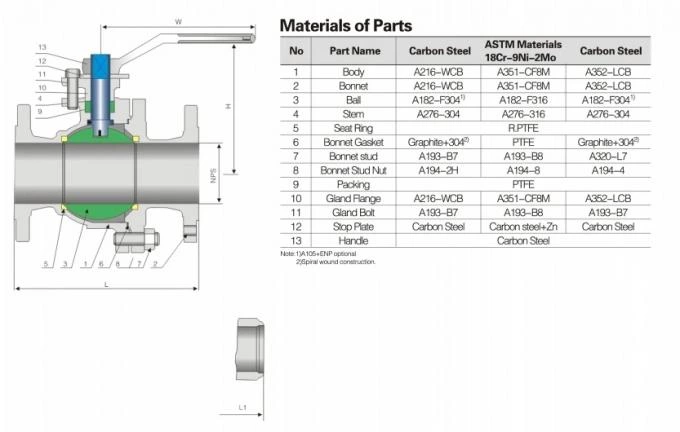

Material Selection for Ball Valves:
- Carbon Steel (A105-WCB, WCC)
- Low Temperture Carbon Steel (LF2-LCC, LCB)
- Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
- Low Alloys (F1-WC1, F11-WC6, F22-WC9)
- High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
- Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
- Bronze (C95800, C95500, C95400)
- Inconel (Inconel 625, Inconel 825)
Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
