3 Piece Trunnion Mounted Ball Valve Soft Seated Convenient Maintenance

China 3 Piece Trunnion Mounted Ball Valve Soft Seated Convenient Maintenance supplier

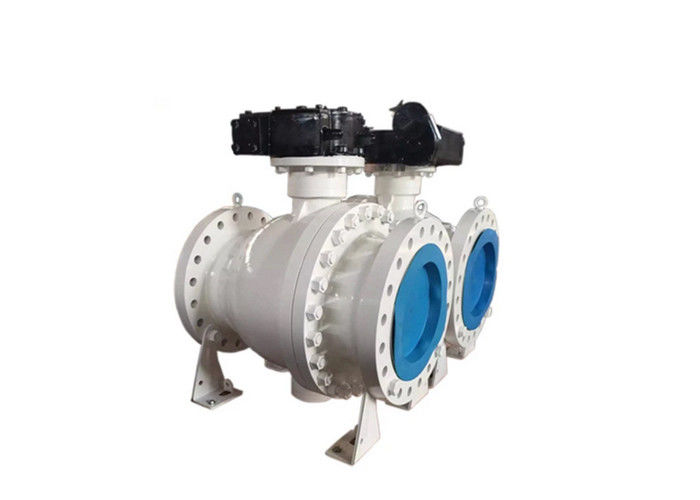

Large Image :  3 Piece Trunnion Mounted Ball Valve Soft Seated Convenient Maintenance

Product Details:

Place of Origin: WENZHOU,CHINA
Brand Name: JIEYU
Certification: API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Mouth
Contact Now
Detailed Product Description
Media: Oil Material: Carbon Steel
Connection Form: Thread Driving Mode: Manual
Nominal Pressure: ANSI CLASS 150-900 Channel: Straight Through Type
Structure: Floating Ball Valve Function: Blow-Down Valve
Temperature: Normal Temperature Standard: BS5351
Application: Industrial Usage, Water Industrial Usage, Household Usage Body / Ball/ Stem / Seat: 4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625
High Light:

three piece ball valve

,

3 piece stainless steel ball valve

Soft Seated 3-Piece Industrial Trunnion Mounted Ball Valves



JIEYU Valve manufactures some of the most dependable cast and forged steel Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the JIEYU design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred ball valves on the market.



3 Piece Trunnion Mounted Ball Valve Soft Seated Convenient Maintenance



Design Features

  • Full port, 1/2"~6" (DN15~DN150)
  • W.P. : CLASS 150-300
  • W.T. : -20°C~200°C (-4°F~392°F)
  • Investment casting
  • Blow-out proof stem
  • Silicone Free
  • Anti-static device (option)
  • Locking device
  • Mounting pad ISO 5211
  • Flange dimension: ASME B16.5
  • Face to face: ASME B16.10

Material Selection for Ball Valves:

  • Carbon Steel (A105-WCB, WCC)
  • Low Temperture Carbon Steel (LF2-LCC, LCB)
  • Stainless Steel (SS304, SS304L, SS316, SS316L, SS347, 904L)
  • Low Alloys (F1-WC1, F11-WC6, F22-WC9)
  • High Alloys (F5-C5, F9-C12,F91-C12A, F62-CN3MN, F20-Alloy 20 )
  • Duplex & Super Duplex (2205-4A, 2507-5A, S32760-6A)
  • Bronze (C95800, C95500, C95400)
  • Inconel (Inconel 625, Inconel 825)

Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.



3 Piece Trunnion Mounted Ball Valve Soft Seated Convenient Maintenance
