| Size: | NPS 2"~24" | Flanged Dimenson: | ASME B16.5, ASME B16.47, BSEN 1092 |
|---|---|---|---|
| Material: | CF8M, CF3,CF3M, CN7M, CF8, WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M | Operation Method: | Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator |
| Connection End Type: | ASME B16.5, ASNE B16.47, BSEN 1092,DINASME B16.25BSEN 558, ASME B16.5 ,BSEN 1092 | Face To Face: | ASME B16.10 |
| High Light: | flange globe valve,wcb globe valve |
||

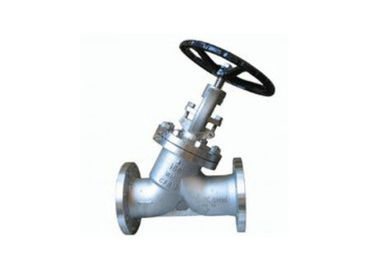

Y Type Globe Valve Pressure Self Sealing Design Bolted Bonnet Rising Stem
| Product type | ON/OFF |
| Product description | Y type pressure self sealing cast globe valve |
| Model | J43H-Y type globe valve |
| Nominal diameter | NPS 2”～24”(DN50～DN600) |
| Operating temperature | -29℃～593℃(the range of service temperature may vary for different materials) |
| Nominal pressure | CLASS 150～2500(PN 20～PN420) |
| Material | Main material: A216 WCB,WCC; A217 WC6,WC9,C5,C12,C12A,CA15; A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC; A494 CW-6MC,CU5MCuC,M35-1; A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN); ASME B 148 C95800,C95500, etc. |
| Design standard | BS 1873 ,ASME B16.34,GB 12235,GB/T 12224 |
| Structural length | ASME B16.10,GB/T 12221 |
| Connecting end | ASME B16.5,ASME B16.25,GB/T 9113,GB/T 12224 |
| Test standard | API 598,ISO 5208,GB/T 26480,GB/T13927 |
| Operation method | Elevating hand wheel, non-elevating hand wheel, bevel gear, motor drive unit, pneumatic drive unit |
| Application fields | For application in fields such as electric power industry, petroleum refining, petrochemical engineering, offshore oil, tap water engineering in urban construction, chemical engineering, etc. |
| Other remarks 1 | Due to the Y type valve body structure, the flow resistance of medium is reduced and the valve clack can be piloted to reduce the vibration of valve clack and valve stem due to impact of medium, thus to ensure the sealing performance. |
| Other remarks 2 | The sealing faces of valve seat and valve clack are build-up welded with hard alloy to improve the erosion resistance and extend the service life of valve. |
| Other remarks 3 | The friction between sealing faces is smaller during opening and closing, facilitating a longer service life. |
| Other remarks 4 | The valve clack is of taper, needle, ball and parabola types, and can be used to adjust the flow rate. |
| Other remarks 5 | SS+ graphite or metallic seal or pressure self-sealing is adopted between valve body and bonnet for reliable sealing |
| Other remarks 6 | Rising stem structure, making the valve switch position be clear at a glance |
| Other remarks 7 | The valve stem thread will not come into contact with the medium, so the corrosion of medium to the thread is reduced. |
| Other remarks 8 | A certain clearance is provided between valve clack and valve stem. You may adjust it by yourself. The sealing is reliable. |
| Other remarks 9 | The valve clack can be machined into parabola, spherical, needle shapes, etc. according to the requirement of customer. It can be used for adjustment (rough adjustment) on pipeline. |
| Other remarks 10 | Short stroke is suitable for application at positions subject to frequent opening. |
| Other remarks 11 | Y-shape stop valve – the streamline flow pass has a very high flow coefficient, and can maximally reduce the pressure drop through the system. |
| Other remarks 12 | Through improving the structural design and selecting reasonable packing structure and qualified packing supplier, the valves can meet the Class A sealing test requirements of ISO 15848 FE. |
