High Pressure 2 Piece Ball Valve Manual JIS 20K CF8 Stainless Steel Material For Gas

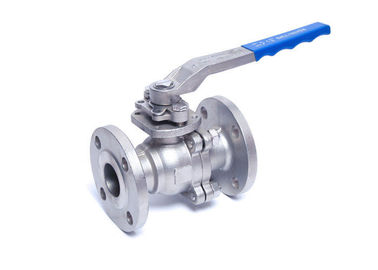

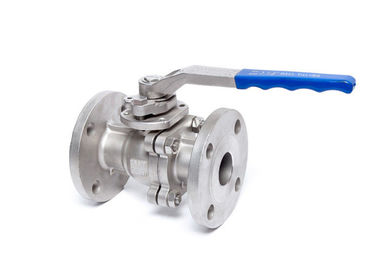

Large Image : High Pressure 2 Piece Ball Valve Manual JIS 20K CF8 Stainless Steel Material For Gas

Product Details:

Place of Origin:	Wenzhou China
Brand Name:	JIEYU
Certification:	API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Plywood Case
Delivery Time:	7-30 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000PCS/Mouth

Contact Now

Detailed Product Description

Medium:	Water Oil Gas	Connection:	Flange
Size:	DN15~DN200	Body Material:	CF8M
Standard:	JIS	Pressure:	10K
High Light:	ss flanged ball valve , ball valve flange type

High Pressure 2 Piece Ball Valve Manual JIS 20K CF8 Stainless Steel Gas

Specifications

JIS Standard Handle Oprated Ball Valve

Applicable Standards:
- Design and Manufacturing: ASME B16.34, API 608

- Flange Connection: JIS B2212 ~ B213

- Fireproof Test: API607 4th 1993

- Test and Inspection: JIS B2003, API6D

Size Range:
- 15A ~ 200A

Pressure Rating:
- JIS 10K 20K
Temperature Range:
- -20°C~185°C

Ball valves shut off the flow of water using a ball, inside the valve. When in the "on" position, the opening is in line with the pipe, allowing water to flow freely. When in the "off" position, the opening is perpendicular to the flow of water, stopping the flow completely. In a ball valve, flow is controlled with a lever. Placing the lever perpendicular to the pipe allows water to flow. Moving it at 90-degree angle stops the flow.

Unit:mm
Pressure	Size	L	φE	φB	φC	T	f
10K	15	108	95	70	52	12	1
	20	117	100	75	58	14	1
	25	127	125	90	70	14	1
	32	140	135	100	80	16	2
	40	165	140	105	85	16	2
	50	178	155	120	100	16	2
	65	190	175	140	120	18	2
	80	203	185	150	130	18	2
	100	229	210	175	155	18	2
	125	356	250	210	185	20	2
	150	394	280	240	215	22	2
	200	457	330	290	265	22	2

Application

Ball Valves are used for flow and pressure control and shut off for corrosive fluids, slurries, normal liquid and gases.
They are used in the oil and natural gas industry, but also find a place in many manufacturing sectors, chemical storage, and even residential uses.

Why choose ball valve

1. They contain a compact and low-maintenance design that requires no lubrication

2. They are cost-effective among all of the valves

3. The biggest advantage of ball valves is that they have poor throttling characteristics that can cause the seat of a ball valve to easily erode.

4. They provide leak-proof service.

5. They open and close quickly.

6. Ball valves have multi-way design flexibility.

Model Selection

2PC Full Port Floating Ball Valve

Standard	ANSI	GB	JIS	DIN
Pressure	150LB/300LB	PN16/PN25/PN40	10K/20K	PN16/PN25/PN40
Matreial	1) CF8/SS304 2) CF8M/SS316 3) CF3/SS304L 4) CF3M/SS316L 5) WCB
Model	1) High Platform Model 2) Handle Model
