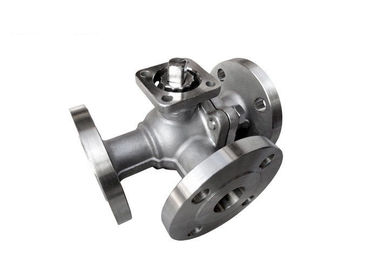

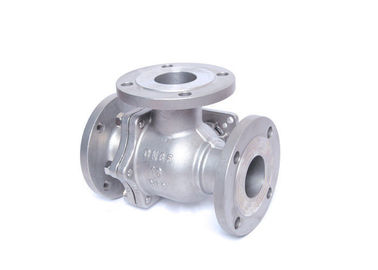

3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation

3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation
3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation 3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation 3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation

Large Image :  3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation

Product Details:

Place of Origin: Wenzhou China
Brand Name: JIEYU
Certification: API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 7-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Mouth
Detailed Product Description
Ball Material: CF8,CF8M Seat Material: PTFE
Body Material: CF8,CF8M,WCB,CF3,CF3M Port Model: L-Port
Standard: GB Model No: Q44F-16P
High Light:

ss flanged ball valve

,

ball valve flange type

3 Way Ball Valve Stainless Steel Direct Mounting Pad for Motor Actuators Automation



Specifications



Casting Floating Ball Valve

Applicable Standards:
- Design and Manufacturing:GB12237-89

- Connection:JB/T79

- Fireproof Test: API607 4th 1993

- Test and Inspection:GB/T13927-1992

Size Range:
- DN15 ~ DN200

Pressure Rating:
- PN16 PN25 PN40
Temperature Range:
- -20°C~185°C



Three-way ball valve is available in T and L versions. The T-type enables three orthogonal pipes to communicate with each other and cut off the third channel to function as a split and merge. The L three-way ball valve type can only connect two pipes that are orthogonal to each other, and can not keep the third pipe connected to each other at the same time, only to distribute.



Pressure Size L L1 D D1 D2 Z-φd ISO5211
φD
4-φW
PN16 15 130 65 95 65 45 4-14 F5 4-φ6
20 160 80 105 75 55 4-14 F5-F7 4-φ8
25 180 90 115 85 68 4-14 F5-F7 4-φ8
32 200 100 135 100 78 4-18 F5-F7 4-φ8
40 220 110 145 110 88 4-18 F7-F10 4-φ10
50 240 120 160 125 102 4-18 F7-F10 4-φ10
65 260 130 180 145 122 4-18 F7-F10 4-φ10
80 280 140 195 160 138 8-18 F10-F12 4-φ12
100 320 160 215 180 158 8-18 F10-F12 4-φ12
125 280 190 245 210 188 8-18 F12-F14 4-φ16
150 440 220 280 240 212 8-23 F14-F16 4-φ16
200 550 275 335 295 268 12-23 F14-F16 4-φ16


Application



The valve is mainly used in industrial circulating water supply and drainage , urban water supply and drainage , high-rise buildings and hotels of pressurized water outlet of the pump , used to cut back water and the elimination of destructive water hammer , guarantee the safe operation of the pipe network . Designed to take full account of the environmental requirements , no vibration, no noise , smooth operation , ensure that hotels, residential quiet and has a power-saving functions.



Why choose us?



1. The fluid resistance is low, and the resistance coefficient is equal to the pipe lengthh.


2. The structure is simple, small in size and light in weight.


3. It is compact and reliable, and has good sealing properties. It has also been widely used in vacuum systems.


4. The operation is convenient, the opening and closing is rapid, and the rotation is 90° from full opening to full closing, which is convenient for long-distance control.


5. The maintenance is convenient, the ball valve has a simple structure, and the sealing ring is generally movable, and the disassembly and replacement are relatively convenient.


6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium does not cause erosion of the sealing surface of the valve.


7. Wide range of applications, from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied.
