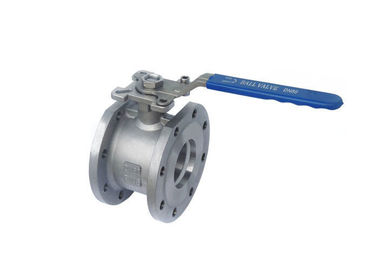

High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators

High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators
High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators

Large Image :  High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators

Product Details:

Place of Origin: Wenzhou China
Brand Name: JIEYU
Certification: API ISO Ts CE

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 7-30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/Mouth
Detailed Product Description
Valve Body: CF8M Ball Material: CF8,CF8M
Seat Material: PTFE Standard: DIN
Size: DN15~DN200 Connection: Wafer
High Light:

ss flanged ball valve

,

ball valve flange type

High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators



Product Features



1PC Wafer Ball Valve

Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989

- Connection : JB / T79

- Fireproof Test: GB / T13927 - 1992

Size Range:
- DN15 ~ DN200

Nominal Pressure:
- 1.6 ~ 4.0 MPa
Temperature Range:
- - 20 °C ~ 350 °C



Compared with ordinary ball valves, Q71F Wafer ball valves have the advantages of short structural length, light weight, convenient installation. The valve seat adopts an soft sealing structure, which is reliable in sealing and easy to open and close. It is equipped with a refractory structure that is reliable and has good sealing in the event of a fire.



Size φd φR φC φD R T L
15 1/2" 15 45 65 95 2 14 35
20 3/4" 20 55 75 105 2 14 38
25 1" 25 65 85 115 2 14 42
32 1 1/4" 32 78 100 135 2 16 50
40 1 1/2" 38 85 110 145 3 16 62
50 2" 50 100 125 160 3 16 72
65 2 1/2" 63.5 120 145 180 3 18 95
80 3" 76 135 160 195 3 20 118
100 4" 95 155 180 215 3 20 140
125 ]5" 118 185 210 245 3 22 195
150 6" 142 210 240 280 3 24 225



Application



The ball valve is suitable for PN1.0~2.5MPa, working temperature 29~180°C (the seat is reinforced PTFE) or 29~300°C (the seat is the PPL) on various pipelines, it is used to cut off or connect the medium in the pipeline. Different materials can be used for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.



Strength



1. The unique design of the eccentric makes the frictionless transmission between the sealing surfaces, which prolongs the service life of the valve.


2. The elastically seat generated by torque.


3. Ingenious wedge design makes the valve have a tighter and tighter automatic sealing function, with compensatory and zero leakage between the sealing surfaces.


4. Small size, light weight, light weight and easy to install.


5. Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control.


6. Replacement seat material can be applied to a variety of media.



Model Selection

Wafer ball valve



Model No Working Pressure
/Mpa
Applicable Temperature
/℃
Applicable Medium
Q71F-16P 1.6 PTFE≤150
PPL≤250
Nitrose
Q71F-25P 2.5 Nitrose
Q71F-16Ti 1.6 Oxidizing Corrosive Medium
Q71F-25Ti 2.5 Oxidizing Corrosive Medium




High Platform CF8 SS304 DN50 Italy Wafer 1 Piece Ball Valve Driving by Actuators 0
