|Seal Surface:||Wedge Gate Valve||Thread Position Of Valve Rod:||Outside Gate Valve|
|Application:||Industrial Usage, Water Industrial Usage||Usage:||Regulation|
|Wedge:||4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625|
rising gate valve,
resilient seated gate valve

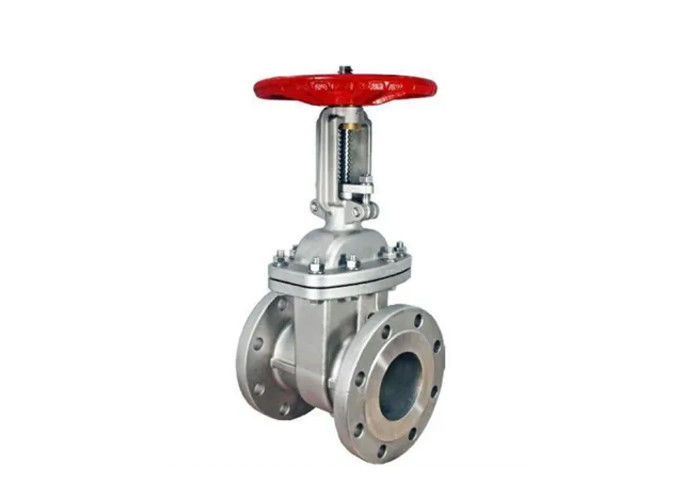

JIEYU VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2" thru 48") and pressure classes (150 thru 2500). The mechanical characteristics make the YIBO wedge gate valve are ideal for bi-directional "total flow system open/shut-off" applications with minimal turbulance and pressure drop.

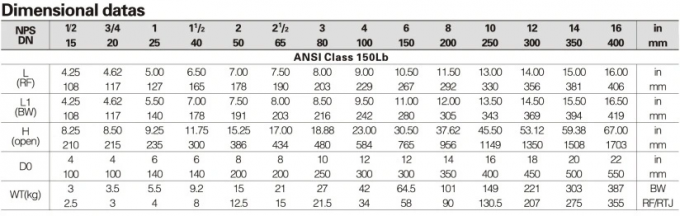

The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI
B16.5 and B16.25.

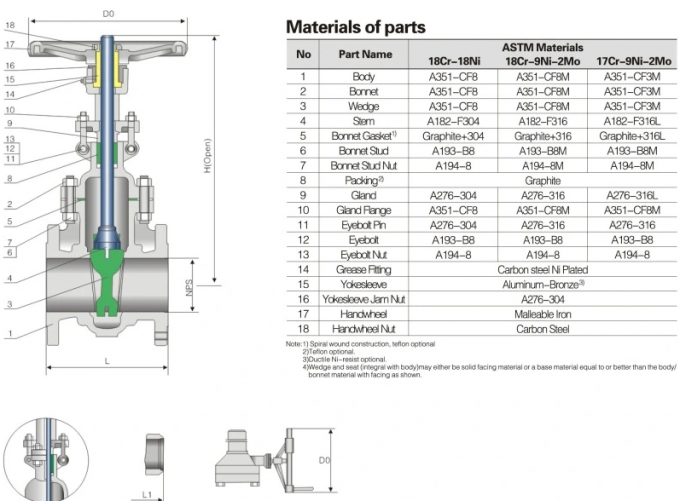

Remarks: The above materials are applicable to valve body.
