|Connection Form:||Flange||Pressure:||Ordinary Temperature|
|Actuator:||Manual||Seal Surface:||Wedge Gate Valve|
|Standard:||ANSI||Body / Wedge / Stem / Seat:||4A(2205), 5A(2507), C5, C12A, Wc6, Wc9,Inconel 625|
high pressure gate valve,
high pressure steam gate valves

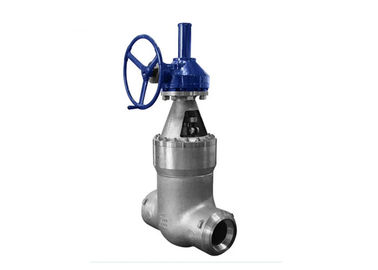

Gost Pressure Seal Bonnet Industrial Gate Valves in Class 1500-2500
JIEYU VALVE manufactures superior cast body, bolted bonnet OS&Y gate valves in a variety of materials, trims, packing types, sizes (2" thru 48") and pressure classes (150 thru 2500). The mechanical characteristics make the JIEYU wedge gate valve are ideal for bi-directional "total flow system open/shut-off" applications with minimal turbulance and pressure drop.
The valve design conforms to API 600 and B16.34. Face-to-face and end-to-end dimensions conform to ANSI B16.5 and B16.25.
Remarks: The above materials are applicable to valve body. Contact JIEYU for the valve component material.
